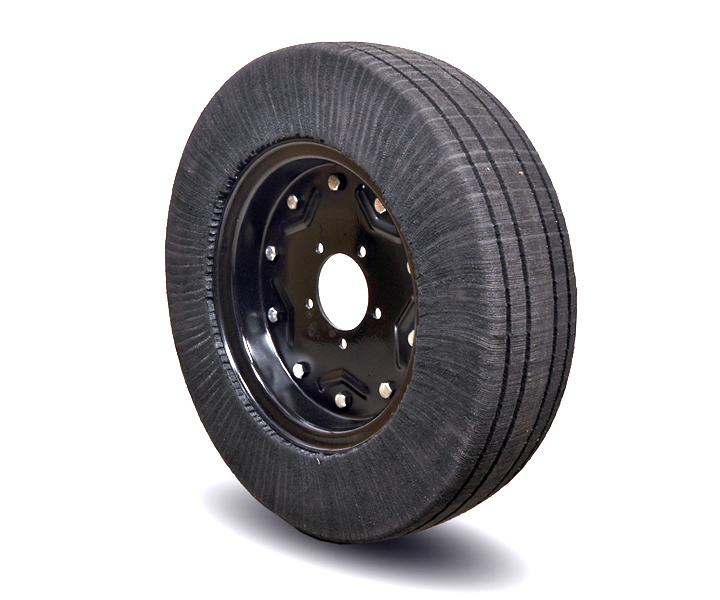

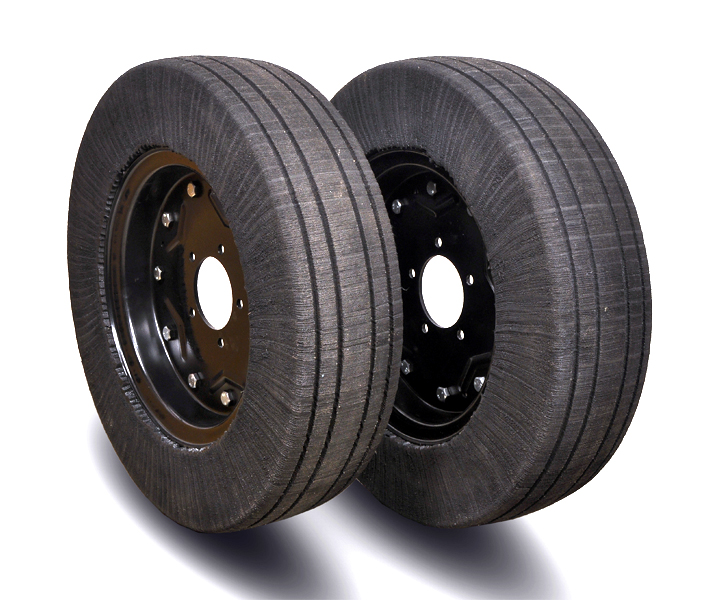

| Item # | SI-TW-0025 | SI-TW-0026 |
|---|---|---|
| Tire Outer Diameter | 25.50"/648mm | 25.50"/648mm |
| Tire Width | 6.30"/160mm | 6.30"/160mm |
| Center Hub Hole Diameter | 4.0"/102mm | 4.0"/102mm |
| Hub Bolt Patten | 5 hole @ PCD(5.5''/139.7) | 5 hole @ PCD(5.5''/139.7) |
| Rim Thickness | 3.2 mm | 3.5 mm |
| Powder Coating | Black and any other... | Black and any other... |
| Weight | 113 LBS/51.50 KGS | 113 LBS/51.50 KGS |
| Fitting in Rotary Mower | Bush Hog, Land Pride, Woods and Others Rotary Cutter | Bush Hog, Land Pride, Woods and Others Rotary Cutter |

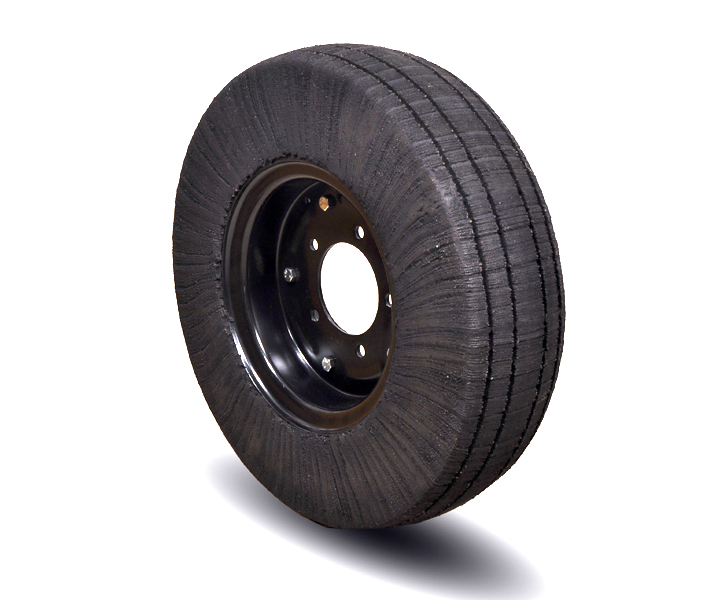

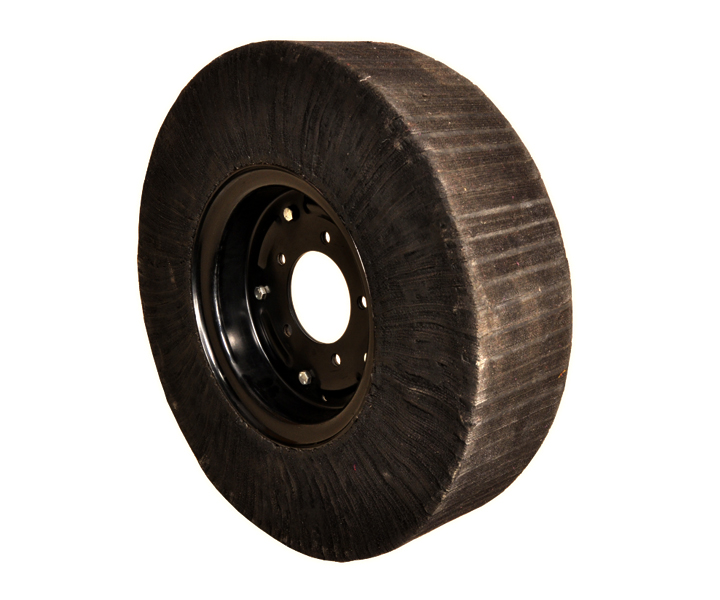

| Item # | SI-TW-0021 | SI-TW-0020 | SI-TW-0023 | SI-TW-0022 |
|---|---|---|---|---|
| Tire Outer Diameter | 20.75"/527mm | 20.75"/527mm | 20.75"/527mm | 20.75"/527mm |
| Tire Width | 5.47"/139mm |
5.47"/139mm |
5.47"/139mm |
5.47"/139mm |
| Center Hub Hole Diameter | 4.0"/102mm |
4.0"/102mm |
3.55"/90.00mm | 4.0"/102mm |
| Hub Bolt Patten | 5 hole @ PCD(5.5''/139.7) | 5 hole @ PCD(5.5''/139.7) | 4 Hole @ PCD(5.00''/127mm) | 5 hole @ PCD(5.5''/139.7) |
| Rim Thickness | 3.2 mm | 3.2 mm | 3.2 mm | 3.2 mm |
| Powder Coating | Black and any other... | Black and any other... | Black and any other... | Black and any other... |
| Weight | 69.3 LBS/31.5 KGS | 69.3 LBS/31.5 KGS | 69.96 LBS/31.8 KGS |
69.3 LBS/31.5 KGS |
| Fitting in Rotary Mower | Bush Hog, Land Pride, Woods and Others Rotary Cutter | Bush Hog, Land Pride, Woods and Others Rotary Cutter |
Bush Hog, Land Pride, Woods and Others Rotary Cutter | Bush Hog, Land Pride, Woods and Others Rotary Cutter |

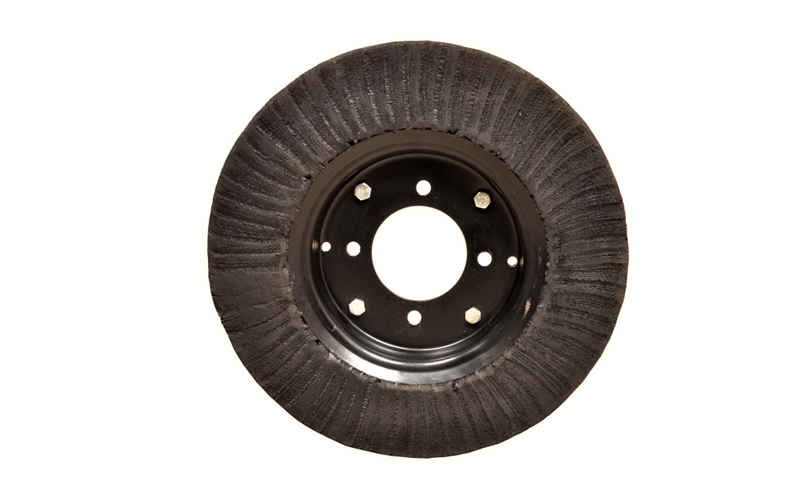

| Item # | SI-TW-0012 | SI-TW-0014 |
|---|---|---|
| Tire Outer Diameter | 14.75"/375mm | 14.75"/375mm |
| Tire Width | 3.75"/95mm | 3.75"/95mm |
| Center Hub Hole Diameter | 3.55"/90mm |
3.55"/90mm |
| Hub Bolt Patten | 4 Hole @ PCD(5.00''/127mm) | 4 Hole @ PCD(5.00''/127mm) |
| Rim Thickness | 2.2 mm | 2.2mm |
| Powder Coating | Black and any other... | Black and any other... |
| Weight | 23.1 LBS/10.5 KGS | 23.1 LBS/10.5 KGS |
| Fitting in Rotary Mower | Bush Hog, Land Pride, Woods and Others Rotary Cutter | Bush Hog, Land Pride, Woods and Others Rotary Cutter |
| Description | SI-FH-0030 | SI-FH-0030/19 | ST-SH-0032 | SI-SH-0032/19 |
|---|---|---|---|---|
| Plate Size | 5"x5"x0.24" | 5"x5"x0.24" | 5.12"/130mm | 5.12"/130mm |
| Pipe Size (OD,ID,Length) | 1.65"x1.38"x5" | 1.65"x1.38"x5" | 1"/25mm | 0.75"/19mm |
| Bushing | 1"/25mm | 0.75"/19mm |
1"/25mm |
0.75"/19mm |
| Type | Steel Fabricated | Steel Fabricated | Cast Iron |
Cast Iron |
| Hub 4 Bolts | 0.50"x1" UNF | 0.50"x1" UNF | 0.50"x1.25" UNF |
0.50"x1.25" UNF |
| Grease Nipple | L-Type | L-Type | Streight | Streight |
| Powder Coating | Black and any other |
Black and any other |
Black and any other |
Black and any other |
| Weight | 3.19 LBS/1.45 KGS | 3.30 LBS/1.50 KGS | 6 LBS/2.75 KGS | 6 LBS/2.75 KGS |
| Description | SI-CH-0050 | SI-CH-0050/19 | SI-CH-0060 | SI-CH-0060/19 |
|---|---|---|---|---|
| Hub Length | 5.25"/133mm | 5.25"/133mm |
5.25"/133mm |
5.25"/133mm |
| Taper Bearing and Racer |
1"/25mm (32007) | 0.75"/19mm (15123) | 1"/25mm (32007) | 0.75"/19mm (15123) |
| Oil Seal |
45x62x10mm | 45x62x10mm | 45x62x10mm | 45x62x10mm |
| Type | Cast Iron | Cast Iron | Cast Iron | Cast Iron |
| Dust Cover | N.A | N.A | Dust Cover Hole 1" | Dust Cover Hole 0.75" |
| Hallow Axle | 1.38x1"x5.08" UNF | 1.38x1"x5.08" UNF | N.A | N.A |
| Hallow Axle Nut | 1.375"/35mm | 1.25"/32mm | N.A | N.A |
| Hub 4 Bolts | 0.50"x1.25" UNF | 0.50"x1.25" UNF | 0.50"x1.25" UNF | 0.50"x1.25" UNF |
| Grease Nipple | Straight | Straight | Straight | Straight |
| Powder Coating | Black and any other | Black and any other | Black and any other | Black and any other |
| Weight | 10 LBS/4.50 KGS | 10 LBS/4.50 KGS | 10 LBS/4.50 KGS | 10 LBS/4.50 KGS |
| Description | SI-UF-00150/1 | SI-UF-00150/19 | SI-UF-00125/1 | SI-UF-00125/19 |
|---|---|---|---|---|
| Plate Width | 3"/75mm | 3"/75mm | 3"/75mm | 3"/75mm |
| Plate Thickness | 0.50"/12mm | 0.50"/12mm | 0.50"/12mm | 0.50"/12mm |
| Yoke Dia | 1.50" | 1.50" | 1.25" | 1.25" |
| Fork Inner Dia Width | 5.50"/140mm | 5.50"/140mm | 5.50"/140mm | 5.50"/140mm |
| Free Play | 6.50" | 6.50" | 5.50" | 5.50" |
| Overall Length | 7.50" | 7.50" | 6.25" | 6.25" |
| Bolt Axle Hole | 1" | 0.75" | 1" | 0.75" |
| Powder Coating | Black and any other |
Black and any other | Black and any other | Black and any other |
| Weight | 14 LBS/6.00 KGS | 14 LBS/6.00 KGS | 13 LBS/6 KGS | 13 LBS/6 KGS |
| Description | SI-HDF-00150/1 | SI-HDF-00150/19 | SI-HDF-00125/1 | SI-HDF-00125/19 |
|---|---|---|---|---|
| Plate Width | 3"/75mm | 3"/75mm | 3"/75mm | 3"/75mm |
| Plate Thickness | 5/8"/16mm | 5/8"/16mm | 5/8"/16mm | 5/8"/16mm |
| Yoke Dia | 1.50" | 1.50" | 1.25" | 1.25" |
| Fork Inner Dia Width | 5.50"/140mm | 5.50"/140mm | 5.50"/140mm | 5.50"/140mm |
| Free Play | 6.50" | 6.50" | 6.50" | 6.50" |
| Overall Length | 7.50" | 7.50" | 7.50" | 7.50" |
| Bolt Axle Hole | 1" | 0.75" | 1" | 0.75" |
| Powder Coating | Black and any other |
Black and any other | Black and any other | Black and any other |
| Weight | 24 LBS/10.50 KGS | 24 LBS/10.50 KGS | 22 LBS/10 KGS | 22 LBS/10 KGS |
